AC charger · Type 2
7.2 kWAC Charger

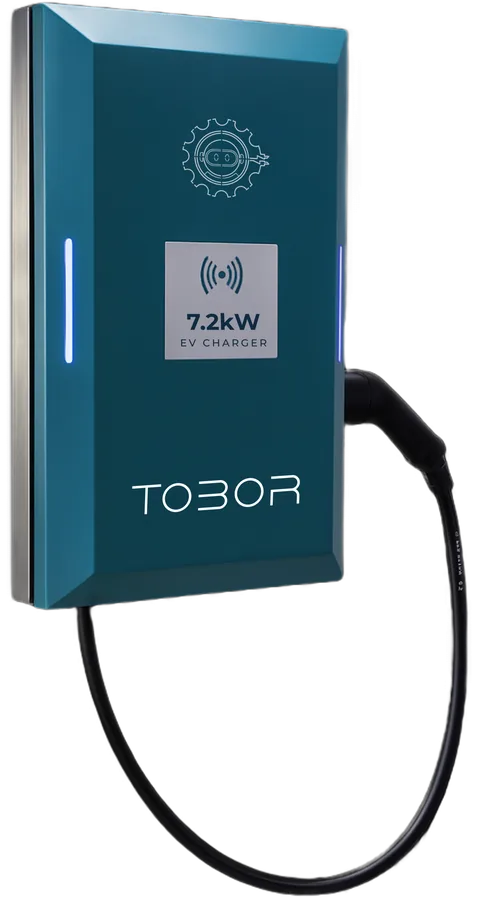

TOBOR AC 7.2 · Villas, housing-society parking and offices
A single-phase Type 2 wallbox for four-wheelers that need faster charging than a 3.3 kW point. IP65-rated for open parking, with RFID and app access and OCPP for networked sites.
Output
7.2 kW AC
Connector
Type 2
Vehicles
4W (Type 2 inlet)
Mounting
Wall mount or pedestal
Specification
Technical sheet
- Rated output
- 7.2 kW AC
- Connector
- Type 2
- Supply
- 230 V AC · single-phase
- Current
- 32 A
- Vehicles
- 4W (Type 2 inlet)
- Charging time
- 6–8 h (4W, full charge)
- Connectivity
- BLE · Wi-Fi · OTA updates · OCPP
- User access
- RFID card · mobile app
- Display
- Smart LED indicators + energy meter
- Mounting
- Wall mount or pedestal
- Enclosure
- IP65 — outdoor-rated
Charging time depends on vehicle battery size, state of charge and the vehicle's accepted power. Supply voltage, connector and protocol are confirmed in the technical offer for each site.
Key features
What's built in
- Type 2 charging gun with intuitive user interface
- IP65 dust- and water-resistant enclosure
- RFID card and mobile-app authentication
- OCPP integration for networked sites and load management
- Over-current, short-circuit, surge and over-temperature protection
- Integrated energy meter with smart LED status
Questions
7.2 kW AC Charger FAQs
Is the 7.2 kW charger suitable for a housing society?
Yes. RFID cards and app access let each resident authenticate their own sessions, and OCPP connects the chargers to the TOBOR CSMS for billing and load management across the parking.
Can it be installed in open parking?
Yes. The enclosure is IP65-rated against dust and water, so it suits open parking lots and carports.
Which vehicles does it charge?
Four-wheelers with a Type 2 AC inlet. Actual charging power is limited by the vehicle's on-board charger.
Need more than one charger?
For societies, fleets and public sites we size the charger mix, load management and — where the grid connection is tight — a TOBOR BESS buffer.
