AC charger · Type 2 (IEC 62196)

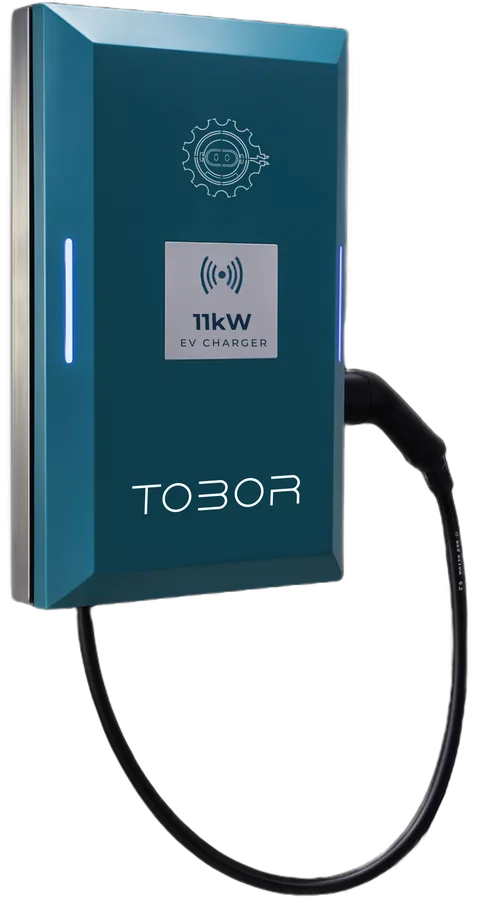

11 kWAC Charger
TOBOR AC 11 · Housing societies, office buildings and hotels
A three-phase Type 2 AC charger for cars that accept 11 kW AC. Compact enough for tight Indian parking layouts, with wired, Wi-Fi or cellular connectivity for networked operation.
Output
11 kW AC
Connector
Type 2 (IEC 62196)
Vehicles
4W (3-phase Type 2)
Mounting
Wall mount or pedestal
Specification
Technical sheet
- Rated output
- 11 kW AC
- Connector
- Type 2 (IEC 62196)
- Supply
- 415 V AC · three-phase
- Current
- 16 A per phase
- Vehicles
- 4W (3-phase Type 2)
- Charging time
- 2–4 h (4W)
- Connectivity
- Ethernet · 4G SIM · Wi-Fi · OTA · OCPP 1.6J
- User access
- RFID card · mobile app
- Display
- Smart LED indicators + energy meter
- Mounting
- Wall mount or pedestal
- Enclosure
- Dust- and water-resistant, outdoor-rated
Charging time depends on vehicle battery size, state of charge and the vehicle's accepted power. Supply voltage, connector and protocol are confirmed in the technical offer for each site.
Key features
What's built in
- Three-phase Type 2 output (IEC 62196)
- Ethernet, 4G SIM and Wi-Fi connectivity with OTA support
- Smart auto power cut-off on full charge and on inactivity
- Power and voltage surge protection
- Short-circuit and over-temperature protection
- Integrated energy meter with smart LED status
Questions
11 kW AC Charger FAQs
Can I use the 11 kW charger for two- or three-wheelers?
No. It is built for four-wheelers with a three-phase Type 2 inlet. For two- and three-wheelers, use the 3.3 kW AC point or a TOBOR LEV DC charger.
How much space does it need?
The compact wall-box or pedestal format fits a standard parking bay. A three-phase supply is required.
Need more than one charger?
For societies, fleets and public sites we size the charger mix, load management and — where the grid connection is tight — a TOBOR BESS buffer.
