AC charger · Type 2

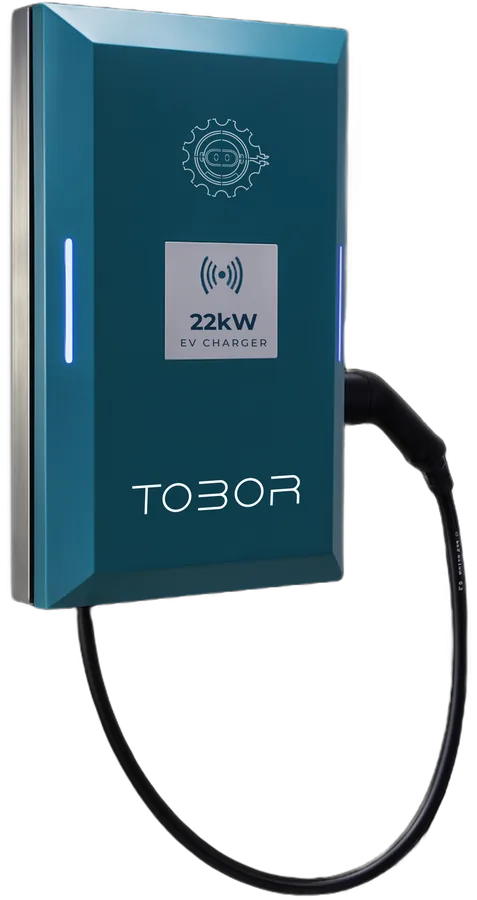

22 kWAC Charger
TOBOR AC 22 · Public AC charging, malls, offices and fleets
A high-power three-phase AC charger for public and commercial sites. Smart load balancing shares the site connection across multiple chargers, and RFID or app access makes it ready for paid public use.
Output
22 kW AC
Connector
Type 2
Vehicles
4W (3-phase Type 2)
Mounting
Wall mount or pedestal
Specification
Technical sheet
- Rated output
- 22 kW AC
- Connector
- Type 2
- Supply
- 415 V AC · three-phase
- Current
- 32 A per phase
- Vehicles
- 4W (3-phase Type 2)
- Charging time
- 2–4 h (4W, vehicle-dependent)
- Connectivity
- Wi-Fi · GSM · LAN · OCPP 1.6J
- User access
- RFID card · mobile app
- Display
- Smart LED indicators + energy meter
- Mounting
- Wall mount or pedestal
- Enclosure
- Indoor and outdoor configurations
Charging time depends on vehicle battery size, state of charge and the vehicle's accepted power. Supply voltage, connector and protocol are confirmed in the technical offer for each site.
Key features
What's built in
- 22 kW three-phase Type 2 charging gun
- Smart load balancing across chargers on one connection
- Wi-Fi, GSM and LAN connectivity
- RFID authentication and app-based user control
- Power and voltage surge protection
- Integrated energy meter for billing
Questions
22 kW AC Charger FAQs
Can the 22 kW charger be used for public charging?
Yes. RFID and app authentication, metering and OCPP make it suitable for paid public charging, managed from the TOBOR CSMS.
Will every car charge at 22 kW?
No. AC charging power is set by the car's on-board charger, and many cars accept 7–11 kW AC. Cars with a 22 kW on-board charger use the full rating.
Need more than one charger?
For societies, fleets and public sites we size the charger mix, load management and — where the grid connection is tight — a TOBOR BESS buffer.
