DC charger · CCS2

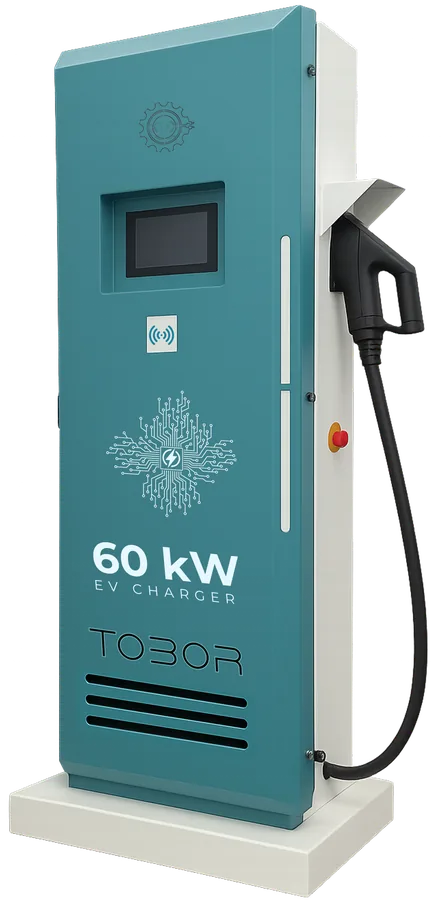

60 kWDC Fast Charger
TOBOR DC 60 · Highways, fuel stations, retail and fleet depots
A CCS2 DC fast charger for highways, retail forecourts and fleet depots. The same in-house controller and EMS as the rest of the range, with remote diagnostics, and it pairs with TOBOR BESS where the grid connection is limited.
Output
60 kW DC
Connector
CCS2
Vehicles
4W (CCS2)
Mounting
Floor stand
Specification
Technical sheet
- Rated output
- 60 kW DC
- Connector
- CCS2
- Supply
- 415 V AC · three-phase
- Current
- Up to 200 A DC
- Vehicles
- 4W (CCS2)
- Charging time
- 30–40 min (4W)
- Connectivity
- 4G · Wi-Fi · LAN · OCPP 1.6J
- User access
- RFID card · mobile app · UPI
- Display
- 7" TFT touch screen
- Mounting
- Floor stand
- Enclosure
- Outdoor public-site enclosure
Charging time depends on vehicle battery size, state of charge and the vehicle's accepted power. Supply voltage, connector and protocol are confirmed in the technical offer for each site.
Key features
What's built in
- CCS2 DC output · 0–500 V or 500–1000 V variants
- 7" TFT LCD touch screen
- OCPP 1.6J with remote diagnostics
- Residual-current monitoring and emergency stop with alarm
- Grid-responsive metering
- BESS-buffered option for constrained grid connections
Questions
60 kW DC Fast Charger FAQs
Where does the 60 kW charger fit best?
Commercial charging stations, highway rest stops and fleet depots where cars need a fast turnaround. A typical four-wheeler top-up takes 30–40 minutes.
What safety features are built in?
Residual-current monitoring, an emergency stop with audible alarm, and full electrical insulation for public use.
Is service available after purchase?
Yes. AMC contracts cover servicing, firmware updates and remote diagnostics.
Need more than one charger?
For societies, fleets and public sites we size the charger mix, load management and — where the grid connection is tight — a TOBOR BESS buffer.
