DC charger · CCS2

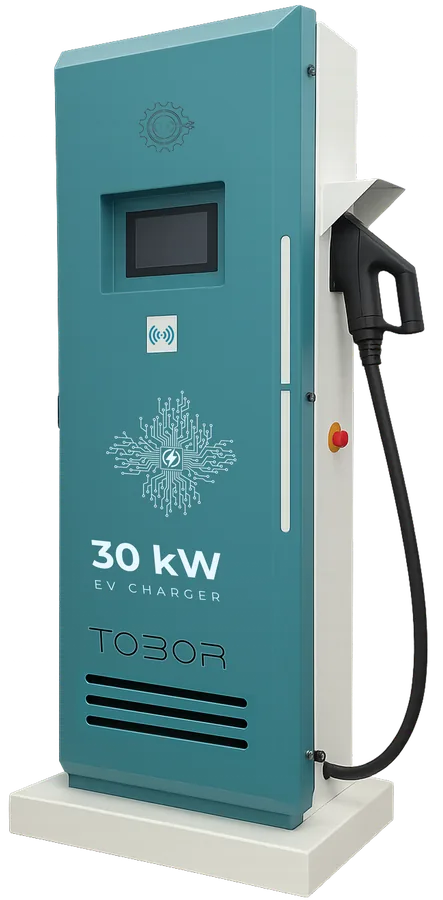

30 kWDC Fast Charger
TOBOR DC 30 · Retail outlets, hotels, offices and city fleets
A compact CCS2 DC fast charger for urban public charging and fleet top-ups. In-house charger controller, 7-inch touch display and OCPP 1.6J, available in 0–500 V and 500–1000 V output variants.
Output
30 kW DC
Connector
CCS2
Vehicles
4W (CCS2)
Mounting
Wall mount or floor stand
Specification
Technical sheet
- Rated output
- 30 kW DC
- Connector
- CCS2
- Supply
- 415 V AC · three-phase
- Current
- Up to 100 A DC
- Vehicles
- 4W (CCS2)
- Charging time
- 45–90 min (4W)
- Connectivity
- 4G · Wi-Fi · LAN · OCPP 1.6J
- User access
- RFID card · mobile app · UPI
- Display
- 7" TFT touch screen
- Mounting
- Wall mount or floor stand
- Enclosure
- IK10 impact-rated (IEC 61851-1 §11.11.2)
Charging time depends on vehicle battery size, state of charge and the vehicle's accepted power. Supply voltage, connector and protocol are confirmed in the technical offer for each site.
Key features
What's built in
- CCS2 DC output · 0–500 V or 500–1000 V variants
- 7" TFT LCD touch screen
- OCPP 1.6J with remote diagnostics
- Residual-current monitoring and emergency stop with alarm
- Grid-responsive metering
- IK10 impact protection, including the display area
Questions
30 kW DC Fast Charger FAQs
Which vehicles can use the 30 kW DC charger?
Four-wheelers with a CCS2 inlet. Charging power follows the vehicle's request within the charger's voltage and current envelope.
Is it suitable for outdoor public sites?
Yes. The enclosure is IK10-rated for mechanical impact and tampering, tested to IEC 61851-1 §11.11.2 including the display.
What supply does it need?
A three-phase 415 V AC supply. It can be wall-mounted or floor-standing.
Need more than one charger?
For societies, fleets and public sites we size the charger mix, load management and — where the grid connection is tight — a TOBOR BESS buffer.
